SOLID principles in .NET revisited part 3: the Open-Closed principle

Introduction

In the previous post we looked at the letter ‘S’ in SOLID, i.e. the single responsibility principle. We identified the reasons for change in the OnDemandAgentService class and broke out 3 of them into separate classes. The OnDemandAgentService can now concentrate on starting a new on-demand agent and delegate other tasks to specialised services such as EmailService. Also, an additional benefit is that other classes in the assembly can re-use those specialised services so that e.g. logging can be centralised.

In this post we’ll look at the second constituent of the SOLID principles, the letter ‘O’ which stands for the Open-Closed Principle OCP.

Read more of this post

SOLID principles in .NET revisited part 2: Single Responsibility Principle

Introduction

In the previous post we set the tone for the recycled series on SOLID. We also presented a piece of code to be improved. There are several issues with this code and we’ll try to improve it step by step as we go through the principles behind SOLID.

In this post we’ll start with ‘S’, i.e. the Single Responsibility Principle (SRP). We’ll partly improve the code by applying SRP to it. Note that the code will still have a lot of faults left after this but we’ll improve it gradually.

Read more of this post

SOLID principles in .NET revisited part 1: introduction with code to be improved

Introduction

Probably every single programmer out there wants to write good code. Nobody has the desire to be ashamed of the code base they have written. Probably no programmer wants to turn a large software project into a failure by deliberately writing low quality code.

What is good code anyway? Opinions differ on this point but we can generally say that good code means code that is straightforward to extend and maintain, code that’s easy to test, code that is flexible, code that is relatively easy to read, code that is difficult to break and code that can swiftly be adapted to changes in the requirements without weeks of refactoring. These traits are interdependent. E.g. code that’s flexible will be easier to change in line with new requirements. The English word “solid” has the meaning of “difficult to break” or “resistant to change” which is naturally applicable to good code.

However, it’s very difficult to write good code in practice. On the other hand it’s very easy to write bad code. Compilers do not understand software engineering principles so they won’t complain if your code is “bad” in any way – except if your code contains faulty syntax but that’s not what we mean by bad code here. Modern object oriented languages like C#, Java or Python provide a lot of flexibility to the programmer. He or she can construct code which performs one or more functions in lots of different ways. Also, different programmers might point out different parts in the same code base as being “bad”.

Read more of this post

The Don’t-Repeat-Yourself (DRY) design principle in .NET Part 3

We’ll finish up the DRY series with the Repeated Execution Pattern. This pattern can be used when you see similar chunks of code repeated at several places. Here we talk about code bits that are not 100% identical but follow the same pattern and can clearly be factored out.

Here’s an example:

static void Main(string[] args)
{
	Console.WriteLine("About to run the DoSomething method");
	DoSomething();
	Console.WriteLine("Finished running the DoSomething method");
	Console.WriteLine("About to run the DoSomethingAgain method");
	DoSomethingAgain();
	Console.WriteLine("Finished running the DoSomethingAgain method");
	Console.WriteLine("About to run the DoSomethingMore method");
	DoSomethingMore();
	Console.WriteLine("Finished running the DoSomethingMore method");
	Console.WriteLine("About to run the DoSomethingExtraordinary method");
	DoSomethingExtraordinary();
	Console.WriteLine("Finished running the DoSomethingExtraordinary method");

	Console.ReadLine();
}

private static void DoSomething()
{
	WriteToConsole("Nils", "a good friend", 30);
}

private static void DoSomethingAgain()
{
	WriteToConsole("Christian", "a neighbour", 54);
}

private static void DoSomethingMore()
{
	WriteToConsole("Eva", "my daughter", 4);
}

private static void DoSomethingExtraordinary()
{
	WriteToConsole("Lilly", "my daughter's best friend", 4);
}

private static void WriteToConsole(string name, string description, int age)
{
	Console.WriteLine(format, name, description, address, age);
}

We’re simulating a simple logging function every time we run we run one of these “dosomething” methods. The pattern is clear: write a message to the console, carry out an action and write another message to the console. The actions have an identical void, parameterless signature. The logging message all have the same format, it’s only the method name that varies. If this chain of actions continues to grow then we have to come back here and add the same type of logging messages. Also, if you later wish to change the logging message format then you’ll have to do it in many different places.

The first step is to factor out a single console-action-console chunk to its own method:

private static void ExecuteStep()
{
	Console.WriteLine("About to run the DoSomething method");
	DoSomething();
	Console.WriteLine("Finished running the DoSomething method");
}

This is of course not good enough as the method is very rigid. It is hard coded to execute the first step only. We can vary the action to be executed using the Action object:

private static void ExecuteStep(Action action)
{
	Console.WriteLine("About to run the DoSomething method");
	action();
	Console.WriteLine("Finished running the DoSomething method");
}

We can call this method as follows:

static void Main(string[] args)
{
	ExecuteStep(DoSomething);
	ExecuteStep(DoSomethingAgain);
	ExecuteStep(DoSomethingExtraordinary);
	ExecuteStep(DoSomethingMore);
	Console.ReadLine();
}

Except that we’re not logging the method names correctly. That’s still hard coded to “DoSomething”. That’s easy to fix as the Action object has public properties to read off the method name:

private static void ExecuteStep(Action action)
{
	string methodName = action.Method.Name;
	Console.WriteLine("About to run the {0} method", methodName);
	action();
	Console.WriteLine("Finished running the {0} method", methodName);
}

We’re almost done. If you look at the Main method then the ExecuteStep(somemethod) is called 4 times. That is also a form of DRY-violation. Imagine that you have a long workflow, such as the steps in a chemical experiment. In that case you may need to repeat the call to ExecuteStep many times.

We can instead put the methods to be executed in a collection of actions:

private static IEnumerable<Action> GetExecutionSteps()
{
	return new List<Action>()
	{
		DoSomething
		, DoSomethingAgain
		, DoSomethingExtraordinary
		, DoSomethingMore
	};
}

You can use this from within Main as follows:

static void Main(string[] args)
{
	IEnumerable<Action> actions = GetExecutionSteps();
	foreach (Action action in actions)
	{
		ExecuteStep(action);
	}
	Console.ReadLine();
}

Now it’s not the responsibility of the Main method to define the steps to be executed. It only iterates through a loop and calls ExecuteStep for each action.

View the list of posts on Architecture and Patterns here.

The Don’t-Repeat-Yourself (DRY) design principle in .NET Part 2

We’ll continue with our discussion of the Don’t-Repeat-Yourself principle where we left off in the previous post. The next issue we’ll consider is repetition of logic.

Repeated logic

Consider that you have the following two domain objects:

public class Product
{
	public long Id { get; set; }
	public string Description { get; set; }
}
public class Order
{
	public long Id { get; set; }
}

Let’s say that the IDs are not automatically assigned when inserting a new row in the database. Instead, it must be calculated. So you come up with the following function to construct an ID which is probably unique:

private long CalculateId()
{
	TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
	long id = Convert.ToInt64(ts.TotalMilliseconds);
	return id;
}

You might include this type of logic in both domain objects:

public class Product
{
	public long Id { get; set; }
	public string Description { get; set; }

	public Product()
	{
		Id = CalculateId();
	}

	private long CalculateId()
	{
		TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
		long id = Convert.ToInt64(ts.TotalMilliseconds);
		return id;
	}
}
public class Order
{
	public long Id { get; set; }

	public Order()
	{
		Id = CalculateId();
	}

	private long CalculateId()
	{
		TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
		long id = Convert.ToInt64(ts.TotalMilliseconds);
		return id;
	}
}

This situation may arise if the two domain objects have been added to your application with a long time delay and you’ve forgotten about the ID generation solution. Also, if you want to keep the ID generation logic independent for each object, then you might continue with this solution thinking that some day the ID generation strategies may be different. However, at some point the rules change and all IDs of type long must be constructed using the CalculateId method. Then you absolutely want to have this logic in one place only. Otherwise if the rule changes, then you probably don’t want to make the same change for every single domain object, right?

Probably a very common solution would be to factor out this logic to a static method:

public class IdHelper
{
	public static long CalculateId()
	{
		TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
		long id = Convert.ToInt64(ts.TotalMilliseconds);
		return id;
	}
}

The updated objects look as follows:

public class Order
{
	public long Id { get; set; }

	public Order()
	{
		Id = IdHelper.CalculateId();
	}
}
public class Product
{
	public long Id { get; set; }
	public string Description { get; set; }

	public Product()
	{
		Id = IdHelper.CalculateId();
	}
}

If you’ve followed through the discussion on the SOLID design principles then you’ll know by now that static methods can be a design smell that indicate tight coupling. In this case there’s a hard dependency of the Product and Order classes on IdHelper.

If all objects in your domain must have an ID of type long then you may let every object derive from a superclass such as this:

public abstract class EntityBase
{
	public long Id { get; private set; }

	public EntityBase()
	{
		Id = CalculateId();
	}

	private long CalculateId()
	{
		TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
		long id = Convert.ToInt64(ts.TotalMilliseconds);
		return id;
	}
}

The Product and Order objects will derive from this class:

public class Product : EntityBase
{
	public string Description { get; set; }

	public Product()
	{}
}
public class Order : EntityBase
{
	public Order()
	{}
}

Then if you construct a new Order or Product class elsewhere then the ID will be assigned by the EntityBase constructor automatically.

In case you don’t like the base class approach then Constructor injection is another approach that can work. We delegate the ID generation logic to an external class which we hide behind an interface:

public interface IIdGenerator
{
	long CalculateId();
}

We have the following implementing class:

public class DefaultIdGenerator : IIdGenerator
{
	public long CalculateId()
	{
		TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
		long id = Convert.ToInt64(ts.TotalMilliseconds);
		return id;
	}
}

You can inject the interface dependency into the Order object as follows:

public class Order
{
	private readonly IIdGenerator _idGenerator;
	public long Id { get; private set; }

	public Order(IIdGenerator idGenerator)
	{
		if (idGenerator == null) throw new ArgumentNullException();
		_idGenerator = idGenerator;
		Id = _idGenerator.CalculateId();
	}
}

You can apply the same method to the Product object. Of course you can mix the above two solutions with the following EntityBase superclass:

public abstract class EntityBase
{
	private readonly IIdGenerator _idGenerator;

	public long Id { get; private set; }

	public EntityBase(IIdGenerator idGenerator)
	{
		if (idGenerator == null) throw new ArgumentNullException();
		_idGenerator = idGenerator;
		Id = _idGenerator.CalculateId();
	}
}

These are some of the possible solutions that you can employ to factor out common logic so that it becomes available for different objects. Obviously if this logic occurs only within the same class then just simply create a private method for it:

private void DoRepeatedLogic()
{
	Order order = new Order();
	TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
	long orderId = Convert.ToInt64(ts.TotalMilliseconds);
	order.Id = orderId;

	Product product = new Product();
	ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
	long productId = Convert.ToInt64(ts.TotalMilliseconds);
	product.Id = productId;
}

This is of course not very clever and you can quickly make it better:

private void DoRepeatedLogic()
{
	Order order = new Order();
	order.Id = CalculateId();

	Product product = new Product();
	product.Id = CalculateId();
}

private long CalculateId()
{
	TimeSpan ts = DateTime.UtcNow - (new DateTime(1970, 1, 1, 0, 0, 0));
	long id = Convert.ToInt64(ts.TotalMilliseconds);
	return id;
}

This is more likely to occur in long classes and methods where you lose track of all the code you’ve written. At some point you realise that some logic is repeated over and over again but it’s rooted deeply nested in a long, complicated method.

If statements

If statements are very important building blocks of an application. It would probably be impossible to write any real life app without them. However, it does not mean they should be used without any limitation. Consider the following domains:

public abstract class Shape
{
}

public class Triangle : Shape
{
	public int Base { get; set; }
	public int Height { get; set; }
}

public class Rectangle : Shape
{
	public int Width { get; set; }
	public int Height { get; set; }
}

Then in Program.cs of a Console app we can simulate a database lookup as follows:

private static IEnumerable&lt;Shape&gt; GetAllShapes()
{
	List&lt;Shape&gt; shapes = new List&lt;Shape&gt;();
	shapes.Add(new Triangle() { Base = 5, Height = 3 });
	shapes.Add(new Rectangle() { Height = 6, Width = 4 });
	shapes.Add(new Triangle() { Base = 9, Height = 5 });
	shapes.Add(new Rectangle() { Height = 3, Width = 2 });
	return shapes;
}

Say you want to calculate the total area of the shapes in the collection. The first approach may look like this:

private static double CalculateTotalArea(IEnumerable&lt;Shape&gt; shapes)
{
	double area = 0.0;
	foreach (Shape shape in shapes)
	{
		if (shape is Triangle)
		{
			Triangle triangle = shape as Triangle;
			area += (triangle.Base * triangle.Height) / 2;
		}
		else if (shape is Rectangle)
		{
			Rectangle recangle = shape as Rectangle;
			area += recangle.Height * recangle.Width;
		}
	}
	return area;
}

This is actually quite a common approach in a software design where our domain objects are mere collections of properties and are void of any self-contained logic. Look at the Triangle and Rectangle classes, they contain no logic whatsoever, they only have properties. They are reduced to the role of data-transfer-objects (DTOs). If you don’t understand at first what’s wrong with the above solution then I suggest you go through the Liskov Substitution Principle here. I won’t repeat what’s written in that post.

This post is about DRY so you may ask what this method has to do with DRY at all as we do not seem to repeat anything. Yes we do, although indirectly. Our initial intention was to create a class hierarchy so that we can work with the abstract class Shape elsewhere. Well, guess what, we’ve failed miserably. In this method we need to reveal not only the concrete implementation types of Shape but we’re forcing an external class to know about the internals of those concrete types.

This is a typical example for how not to use if statements in software. In the posts on the SOLID design principles we mentioned the Tell-Don’t-Ask (TDA) principle. It basically states that you should not ask an object questions about its current state before you ask it to perform something. Well, this piece of code is a clear violation of TDA although the lack of logic in the Triangle and Rectangle classes forced us to ask these questions.

The solution – or at least one of the viable solutions – will be to hide this calculation logic behind each concrete Shape class:

public abstract class Shape
{
	public abstract double CalculateArea();
}

public class Triangle : Shape
{
	public int Base { get; set; }
	public int Height { get; set; }

	public override double CalculateArea()
	{
		return (Base * Height) / 2;
	}
}

public class Rectangle : Shape
{
	public int Width { get; set; }
	public int Height { get; set; }

	public override double CalculateArea()
	{
		return Width * Height;
	}
}

The updated total area calculation looks as follows:

private static double CalculateTotalArea(IEnumerable&lt;Shape&gt; shapes)
{
	double area = 0.0;
	foreach (Shape shape in shapes)
	{
		area += shape.CalculateArea();
	}
	return area;
}

We’ve got rid of the if statements, we don’t violate TDA and the logic to calculate the area is hidden behind each concrete type. This allows us even to follow the above mentioned Liskov Substitution Principle.

View the list of posts on Architecture and Patterns here.

The Don’t-Repeat-Yourself (DRY) design principle in .NET Part 1

Introduction

The idea behind the Don’t-Repeat-Yourself (DRY) design principle is an easy one: a piece of logic should only be represented once in an application. In other words avoiding the repetition of any part of a system is a desirable trait. Code that is common to at least two different parts of your system should be factored out into a single location so that both parts call upon in. In plain English all this means that you should stop doing copy+paste right away in your software. Your motto should be the following:

Repetition is the root of all software evil.

Repetition does not only refer to writing the same piece of logic twice in two different places. It also refers to repetition in your processes – testing, debugging, deployment etc. Repetition in logic is often solved by abstractions or some common service classes whereas repetition in your process is tackled by automation. A lot of tedious processes can be automated by concepts from Continuous Integration and related automation software such as TeamCity. Unit testing can be automated by testing tools such as nUnit. You can read more on Test Driven Development and unit testing here.

In this ahort series on DRY I’ll concentrate on the ‘logic’ side of DRY. DRY is known by other names as well: Once and Only Once, and Duplication is Evil (DIE).

Examples

Magic strings

These are hard-coded strings that pop up at different places throughout your code: connection strings, formats, constants, like in the following code example:

class Program
{
	static void Main(string[] args)
	{
		DoSomething();
		DoSomethingAgain();
		DoSomethingMore();
		DoSomethingExtraordinary();
		Console.ReadLine();
	}

	private static void DoSomething()
	{
		string address = "Stockholm, Sweden";
		string format = "{0} is {1}, lives in {2}, age {3}";
		Console.WriteLine(format, "Nils", "a good friend", address, 30);
	}

	private static void DoSomethingAgain()
	{
		string address = "Stockholm, Sweden";
		string format = "{0} is {1}, lives in {2}, age {3}";
		Console.WriteLine(format, "Christian", "a neighbour", address, 54);
	}

	private static void DoSomethingMore()
	{
		string address = "Stockholm, Sweden";
		string format = "{0} is {1}, lives in {2}, age {3}";
		Console.WriteLine(format, "Eva", "my daughter", address, 4);
	}

	private static void DoSomethingExtraordinary()
	{
		string address = "Stockholm, Sweden";
		string format = "{0} is {1}, lives in {2}, age {3}";
		Console.WriteLine(format, "Lilly", "my daughter's best friend", address, 4);
	}
}

This is obviously a very simplistic example but imagine that the methods are located in different sections or even different modules in your application. In case you want to change the address you’ll need to find every hard-coded instance of the address. Likewise if you want to change the format you’ll need to update it in several different places. We can put these values into a separate location, such as Constants.cs:

public class Constants
{
	public static readonly string Address = "Stockholm, Sweden";
	public static readonly string StandardFormat = "{0} is {1}, lives in {2}, age {3}";
}

If you have a database connection string then that can be put into the configuration file app.config or web.config.

The updated programme looks as follows:

class Program
{
	static void Main(string[] args)
	{
		DoSomething();
		DoSomethingAgain();
		DoSomethingMore();
		DoSomethingExtraordinary();
		Console.ReadLine();
	}

	private static void DoSomething()
	{
		string address = Constants.Address;
		string format = Constants.StandardFormat;
		Console.WriteLine(format, "Nils", "a good friend", address, 30);
	}

	private static void DoSomethingAgain()
	{
		string address = Constants.Address;
		string format = Constants.StandardFormat;
		Console.WriteLine(format, "Christian", "a neighbour", address, 54);
	}

	private static void DoSomethingMore()
	{
		string address = Constants.Address;
		string format = Constants.StandardFormat;
		Console.WriteLine(format, "Eva", "my daughter", address, 4);
	}

	private static void DoSomethingExtraordinary()
	{
		string address = Constants.Address;
		string format = Constants.StandardFormat;
		Console.WriteLine(format, "Lilly", "my daughter's best friend", address, 4);
	}
}

This is a step to the right direction. If we change the constants in Constants.cs then the change will be propagated through the application. However, we still repeat the following bit over and over again:

string address = Constants.Address;
string format = Constants.StandardFormat;

The VALUES of the constants are now stored in one place, but what if we change the location of our constants to a different file? Or decide to read them from a file or a database? Then again we’ll need to revisit all these locations. We can move those variables to the class level and use them in our code as follows:

class Program
	{
		private static string address = Constants.Address;
		private static string format = Constants.StandardFormat;

		static void Main(string[] args)
		{
			DoSomething();
			DoSomethingAgain();
			DoSomethingMore();
			DoSomethingExtraordinary();
			Console.ReadLine();
		}

		private static void DoSomething()
		{
			Console.WriteLine(format, "Nils", "a good friend", address, 30);
		}

		private static void DoSomethingAgain()
		{
			Console.WriteLine(format, "Christian", "a neighbour", address, 54);
		}

		private static void DoSomethingMore()
		{
			Console.WriteLine(format, "Eva", "my daughter", address, 4);
		}

		private static void DoSomethingExtraordinary()
		{
			Console.WriteLine(format, "Lilly", "my daughter's best friend", address, 4);
		}
	}

We’ve got rid of the magic string repetition, but we can do better. Notice that each method performs basically the same thing: write to the console. This is an example of duplicate logic. The data written to the console is very similar in each case, we can factor it out to another method:

private static void WriteToConsole(string name, string description, int age)
{
	Console.WriteLine(format, name, description, address, age);
}

The updated Program class looks as follows:

class Program
	{
		private static string address = Constants.Address;
		private static string format = Constants.StandardFormat;

		static void Main(string[] args)
		{
			DoSomething();
			DoSomethingAgain();
			DoSomethingMore();
			DoSomethingExtraordinary();
			Console.ReadLine();
		}

		private static void DoSomething()
		{
			WriteToConsole("Nils", "a good friend", 30);
		}

		private static void DoSomethingAgain()
		{
			WriteToConsole("Christian", "a neighbour", 54);
		}

		private static void DoSomethingMore()
		{
			WriteToConsole("Eva", "my daughter", 4);
		}

		private static void DoSomethingExtraordinary()
		{
			WriteToConsole("Lilly", "my daughter's best friend", 4);
		}

		private static void WriteToConsole(string name, string description, int age)
		{
			Console.WriteLine(format, name, description, address, age);
		}
	}

Magic numbers

It’s not only magic strings that can cause trouble but magic numbers as well. Imagine that you have the following class in your application:

public class Employee
{
	public string Name { get; set; }
	public int Age { get; set; }
	public string Department { get; set; }
}

We’ll imitate a database lookup as follows:

private static IEnumerable<Employee> GetEmployees()
{
	return new List<Employee>()
	{
		new Employee(){Age = 30, Department="IT", Name="John"}
		, new Employee(){Age = 34, Department="Marketing", Name="Jane"}
		, new Employee(){Age = 28, Department="Security", Name="Karen"}
		, new Employee(){Age = 40, Department="Management", Name="Dave"}
	};
}

Notice the usage of the index 1 in the following method:

private static void DoMagicInteger()
{
	List<Employee> employees = GetEmployees().ToList();
	if (employees.Count > 0)
	{
		Console.WriteLine(string.Concat("Age: ", employees[1].Age, ", department: ", employees[1].Department
			, ", name: ", employees[1].Name));
	}
}

So we only want to output the properties of the second employee in the list, i.e. the one with index 1. One issue is a conceptual one: why are we only interested in that particular employee? What’s so special about him/her? This is not clear for anyone investigating the code. The second issue is that if we want to change the value of the index then we’ll need to do it in three places. If this particular index is important elsewhere as well then we’ll have to visit those places too and update the index.

We can solve both issues using the same simple techniques as in the previous example. Set a new constant in Constants.cs:

public class Constants
{
	public static readonly string Address = "Stockholm, Sweden";
	public static readonly string StandardFormat = "{0} is {1}, lives in {2}, age {3}";
	public static readonly int IndexOfMyFavouriteEmployee = 1;
}

Then introduce a new class level variable in Program.cs:

private static int indexOfMyFavouriteEmployee = Constants.IndexOfMyFavouriteEmployee;

The updated DoMagicInteger() method looks as follows:

private static void DoMagicInteger()
{
	List<Employee> employees = GetEmployees().ToList();
	if (employees.Count > 0)
	{
		Employee favouriteEmployee = employees[indexOfMyFavouriteEmployee];
		Console.WriteLine(string.Concat("Age: ", favouriteEmployee.Age,
			", department: ", favouriteEmployee.Department
			, ", name: ", favouriteEmployee.Name));
	}
}

View the list of posts on Architecture and Patterns here.

A model .NET web service based on Domain Driven Design Part 10: tests and conclusions

Introduction

In the previous post we’ve come as far as implementing all Get, Post, Put and Delete methods. We also tested the Get methods as the results could be viewed in the browser alone. In order to test the Post, Put and Delete methods we’ll need to do some more work.

Demo

There are various tools out there that can generate any type of HTTP calls for you where you can specify the JSON inputs, HTTP headers etc. However, we’re programmers, right? We don’t need no tools, we can write a simple one ourselves! Don’t worry, I only mean a GUI-less throw-away application that consists of a few lines of code, not a complete Fiddler.

Fire up Visual Studio and create a new Console application. Add a reference to the System.Net.Http library. Also, add a NuGet package reference to Json.NET:

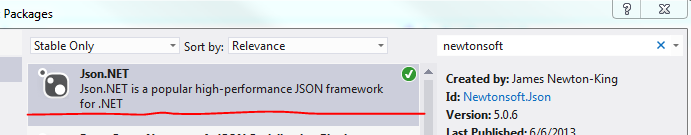

Newtonsoft Json.NET in NuGet

System.Net.Http includes all objects necessary for creating Http messages. Json.NET will help us package the input parameters in the message body.

POST

Let’s start with testing the insertion method. Recall from the previous post that the Post method in CustomersController is expecting an InsertCustomerRequest object:

public HttpResponseMessage Post(CustomerPropertiesViewModel insertCustomerViewModel)

We’ll make this easy for us and create an identical CustomerPropertiesViewModel in the tester app so that the Json translation will be as easy as possible. So insert a class called CustomerPropertiesViewModel into the tester app with the following properties:

public string Name { get; set; }
public string AddressLine1 { get; set; }
public string AddressLine2 { get; set; }
public string City { get; set; }
public string PostalCode { get; set; }

Insert the following method in order to test the addition of a new customer:

private static void RunPostOperation()
{
	HttpRequestMessage requestMessage = new HttpRequestMessage(HttpMethod.Post, _serviceUri);
	requestMessage.Headers.ExpectContinue = false;
	CustomerPropertiesViewModel newCustomer = new CustomerPropertiesViewModel()
	{
		AddressLine1 = "New address"
		, AddressLine2 = string.Empty
		, City = "Moscow"
		, Name = "Awesome customer"
		, PostalCode = "123987"
	};
	string jsonInputs = JsonConvert.SerializeObject(newCustomer);
	requestMessage.Content = new StringContent(jsonInputs, Encoding.UTF8, "application/json");
	HttpClient httpClient = new HttpClient();
	httpClient.Timeout = new TimeSpan(0, 10, 0);
	Task<HttpResponseMessage> httpRequest = httpClient.SendAsync(requestMessage,
			HttpCompletionOption.ResponseContentRead, CancellationToken.None);
	HttpResponseMessage httpResponse = httpRequest.Result;
	HttpStatusCode statusCode = httpResponse.StatusCode;
	HttpContent responseContent = httpResponse.Content;
	if (responseContent != null)
	{
		Task<String> stringContentsTask = responseContent.ReadAsStringAsync();
		String stringContents = stringContentsTask.Result;
		Console.WriteLine("Response from service: " + stringContents);
	}
	Console.ReadKey();
}

…where _serviceUri is a private Uri:

private static Uri _serviceUri = new Uri("http://localhost:9985/customers");

This is the URL that’s displayed in the browser when you start the web API project. The port number may of course differ from yours, so adjust it accordingly.

This is of course not a very optimal method as it carries out a lot of things, but that’s beside the point right now. We only a need a simple tester, that’s all.

If you don’t know the HttpClient and the related objects in this method, then don’t worry, you’ve just learned something new. We set the web method to POST and assign the string contents to the JSONified version of the CustomerPropertiesViewModel object. We also set the request timeout to 10 minutes so that you don’t get a timeout exception as you slowly jump through the code in the web service in a bit. The application type is set to JSON so that the web service understands which media type converter to take. We then send the request to the web service using the SendAsynch method and wait for a reply.

Make sure to insert a call to this method from within Main.

Open CustomersController in the DDD skeleton project and set a breakpoint within the Post method here:

InsertCustomerResponse insertCustomerResponse = _customerService.InsertCustomer(new InsertCustomerRequest() { CustomerProperties = insertCustomerViewModel });

Start the skeleton project. Then run the tester. If everything went well then execution should stop at the breakpoint. Inspect the contents of the incoming insertCustomerViewModel parameter. You’ll see that the parameter properties have been correctly assigned by the JSON formatter.

From this point on I encourage you to step through the web service call with F11. You’ll see how the domain object is created and validated – including the Address property, how it is converted into the corresponding database type, how the IUnitOfWork implementation – InMemoryUnitOfWork – registers the insertion and how it is persisted. You’ll also see that all abstract dependencies have been correctly instantiated by StructureMap, we haven’t got any exceptions along the way which may point to some null dependency problem.

When the web service call returns the you should see that it returned an Exception == null property to the caller, i.e. the tester app. Now refresh the browser and you’ll see the new customer just inserted into memory.

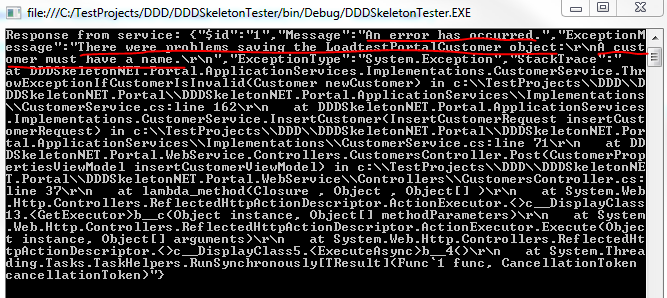

Let’s try something else: assign an empty string to the Name property of the CustomerPropertiesViewModel object in the tester app. We know that a customer must have a name so we’re expecting some trouble. Run the tester app and you should see an exception being thrown at this code line:

throw new Exception(brokenRulesBuilder.ToString());

…within CustomerService.cs. This is because the BrokenRules list of the Customer domain contains one broken rule. Let the code execute and you’ll see in the tester app that we received the correct exception message:

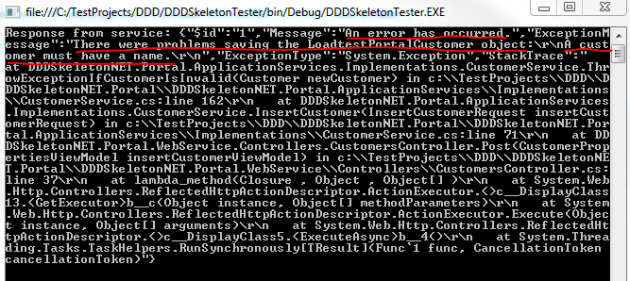

Validation exception from web service

Now assign an empty string to the City property as we know that an Address must have a city. You’ll see a similar response:

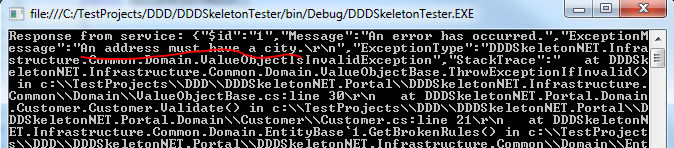

Address must have a city validation exception

PUT

We’ll follow the same analogy as above in order to update a customer. Insert the following object into the tester app:

public class UpdateCustomerViewModel : CustomerPropertiesViewModel
{
	public int Id { get; set; }
}

Insert the following method into Program.cs:

private static void RunPutOperation()
{
	HttpRequestMessage requestMessage = new HttpRequestMessage(HttpMethod.Put, _serviceUri);
	requestMessage.Headers.ExpectContinue = false;
	UpdateCustomerViewModel updatedCustomer = new UpdateCustomerViewModel()
	{
		Id = 2
		, AddressLine1 = "Updated address line 1"
		, AddressLine2 = string.Empty
		, City = "Updated city"
		, Name = "Updated customer name"
		, PostalCode = "0988765"
	};

	string jsonInputs = JsonConvert.SerializeObject(updatedCustomer);
	requestMessage.Content = new StringContent(jsonInputs, Encoding.UTF8, "application/json");
	HttpClient httpClient = new HttpClient();
	httpClient.Timeout = new TimeSpan(0, 10, 0);
	Task<HttpResponseMessage> httpRequest = httpClient.SendAsync(requestMessage,
			HttpCompletionOption.ResponseContentRead, CancellationToken.None);
	HttpResponseMessage httpResponse = httpRequest.Result;
	HttpStatusCode statusCode = httpResponse.StatusCode;
	HttpContent responseContent = httpResponse.Content;
	if (responseContent != null)
	{
		Task<String> stringContentsTask = responseContent.ReadAsStringAsync();
		String stringContents = stringContentsTask.Result;
		Console.WriteLine("Response from service: " + stringContents);
	}
	Console.ReadKey();
}

This is almost identical to the Post operation method except that we set the http verb to PUT and we send a JSONified UpdateCustomerViewModel object to the service. You’ll notice that we want to update the customer with id = 2. Comment out the call to RunPostOperation() in Main and add a new call to RunPutOperation() instead. Set a breakpoint within the Put method in CustomersController of the skeleton web service. Jump through the code execution with F11 as before and follow along how the customer is found and updated. Refresh the browser to see the updated values of Customer with id = 2. Run the same test as above: set the customer name to an empty string and try to update the resource. The request should fail in the validation phase.

DELETE

The delete method is a lot simpler as we only need to send an id to the web Delete method of the web service:

private static void RunDeleteOperation()
{
	HttpRequestMessage requestMessage = new HttpRequestMessage(HttpMethod.Delete, string.Concat(_serviceUri, "/3"));
	requestMessage.Headers.ExpectContinue = false;
	HttpClient httpClient = new HttpClient();
	httpClient.Timeout = new TimeSpan(0, 10, 0);
	Task<HttpResponseMessage> httpRequest = httpClient.SendAsync(requestMessage,
			HttpCompletionOption.ResponseContentRead, CancellationToken.None);
	HttpResponseMessage httpResponse = httpRequest.Result;
	HttpStatusCode statusCode = httpResponse.StatusCode;
	HttpContent responseContent = httpResponse.Content;
	if (responseContent != null)
	{
		Task<String> stringContentsTask = responseContent.ReadAsStringAsync();
		String stringContents = stringContentsTask.Result;
		Console.WriteLine("Response from service: " + stringContents);
	}
	Console.ReadKey();
}

You’ll see that we set the http method to DELETE and extended to service Uri to show that we’re talking about customer #3.

Set a breakpoint within the Delete method in CustomersController.cs and as before step through the code execution line by line to see how the deletion is registered and persisted by IUnitOfWork.

Analysis and conclusions

That actually completes the first version of the skeleton project. Let’s see if we’re doing any better than the tightly coupled solution of the first installment of this series.

Dependency graph

If you recall from the first part of this series then the greatest criticism against the technology-driven layered application was that all layers depended on the repository layer and that EF-related objects permeated the rest of the application.

We’ll now look at an updated dependency graph. Before we do that there’s a special group of dependency in the skeleton app that slightly distorts the picture: the web layer references all other layers for the sake of StructureMap. StructureMap needs some hints as to where to look for implementations so we had to set a library reference to all other layers. This is not part of any business logic so a true dependency graph should, I think, not consider this set of links. If you don’t like this coupling then it’s perfectly reasonable to create a separate very thin layer for StructureMap and let that layer reference infra, repo, domains and services.

If we start from the top then we see that the web layer talks to the service layer through the ICustomerService interface. The ICustomerService interface uses RequestResponse objects to communicate with the outside world. Any implementation of ICustomerService will communicate through those objects so their use within CustomersController is acceptable as well. The Service doesn’t spit out Customer domain objects directly. Instead it wraps CustomerViewModels that are wrapped within the corresponding GetCustomersResponse object. Therefore I think we can conclude that the Web layer only depends on the service layer and that this coupling is fairly loose.

The application service layer has a reference to the Infrastructure layer – through the IUnitOfWork interface – and the Domain layer. In a full-blown project there will be more links to the Infrastructure layer – logging, caching, authentication etc. – but as longs as you hide those concerns behind abstractions you’ll be fine. The Customer repository is only propagated in the form of an interface – ICustomerRepository. Otherwise the domain objects are allowed to bubble up to the Service layer as they are the central elements of the application.

The Domain layer has a dependency on the Infrastructure layer through abstractions such as EntityBase, IAggregateRoot and IRepository. That’s all fine and good. The only coupling that’s tighter than these is the BusinessRule object where we construct a new BusinessRule in the CustomerBusinessRule class. In retrospect it may have been a better idea to have an abstract BusinessRule class in the infrastructure layer with concrete implementations of it in the domain layer.

The repository layer has a reference to the Infrastructure layer – again through abstractions such as IAggregateRoot and IUnitOfWorkRepository – and the Domain layer. Notice that we changed the direction of the dependency compared to the how-not-to-do mini-project of the first post in this series: the domain layer does not depend on the repository but the repository depends on the domain layer.

Here’s the updated dependency graph:

DDD improved dependency graph

I think the most significant change compared to where we started is that no single layer is directly or indirectly dependent on the concrete repository layer. You can test and unload the project from the solution – right-click, select Unload Project. There will be a broken reference in the Web layer that only exists for the sake of StructureMap, but otherwise the solution survives this “amputation”. We have successfully hidden the most technology-driven layer behind an abstraction that can be replaced at ease. You need to implement the IUnitOfWork and IUnitOfWorkRepository interfaces and you should be fine. You can then instruct StructureMap to use the new implementation instead. You can even switch between two or more different implementations to test how the different technologies work before you go for a specific one in your project. Of course writing those implementations may not be a trivial task but switching from one technology to another will certainly be.

Another important change is that the domain layer is now truly the central one in the solution. The services and data access layers directly reference it. The UI layer depends on it indirectly through the service layer.

That’s all folks. I hope you have learned new things and can use this skeleton solution in some way in your own project.

The project has been extended. Read the first extension here.

View the list of posts on Architecture and Patterns here.

ultimatemindsettoday

A great WordPress.com site

Elliot Balynn's Blog

A directory of wonderful thoughts

HarsH ReaLiTy

A Good Blog is Hard to Find

Softwarearchitektur in der Praxis

Wissenswertes zu Webentwicklung, Domain-Driven Design und Microservices

Technology Talks

on Microsoft technologies, Web, Android and others

Software Engineering

Web development

Disparate Opinions

Various tidbits

chsakell's Blog

WEB APPLICATION DEVELOPMENT TUTORIALS WITH OPEN-SOURCE PROJECTS

Guru N Guns's

OneSolution To dOTnET.

Johnny Zraiby

Measuring programming progress by lines of code is like measuring aircraft building progress by weight.

%d bloggers like this:
